TTU-205J Retrofit Kit

Product Details

With the TTU-205J Retrofit Kit, users can upgrade most TTU-205 models to the J configuration. This increases reliability and provides automated calibration capability using an ADC Series air data calibrator. Several cost benefit analysis have shown this upgrade can save up to 12 hours of test and calibration. The upgrade can be installed into any TTU-205D, TTU-205F, TTU-205G or TTU-205H test set in about 45 minutes. Once the installation is successfully installed, then initialized – the test set then becomes a TTU-205J.

Upgrade TTU-205/D, TTU-205/F, TTU-205/G, TTU-205/H, TTU-205S/S & FLMTS testers
RVSM Accuracy, improved test consistency and reduction in turn-around times
Extends operational life of assets, saving on new acquisition costs
P/N: TVCS-5200 TTU-205/J Retrofit Kit
P/N: TVCS-5001 A2 TTU-205J PCA, NSN: 5998-01-509-8040
P/N: TVCS-5101 A1 Enhanced I/O PCA, NSN: 5998-01-515-9821

Features
Literature

TTU-205/J Retrofit Kit The TTU-205J Retrofit Kit can be used to standardize any TTU-205D, TTU-205F, TTU-205G, TTU-205G/E, TTU-205H, TTU-205S/S or FLMTS to the TTU-205J configuration. The TTU-205J Standardization Program, adopted in 2003 by the United States Air Force, has retrofitted over 1,300 test sets to the TTU-205/J configuration. The TTU-205J retrofit provides increased test set reliability and accuracy for RVSM testing. Additional benefits include:
• Improves accuracy and test consistency through software automation software
• Automated calibration provides reduction in turn-around times for repairs and calibrations
• Extends the operational life of TTU-205 assets
• Eliminates all soldering requirements for calibration

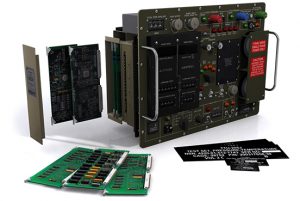

TTU-205/J Retrofit Kit The kit, which includes two (2) new printed circuit boards and a decal and decal set, can be installed in less than 30 minutes. The TTU-205J Kit Includes one (1) of each of the following:

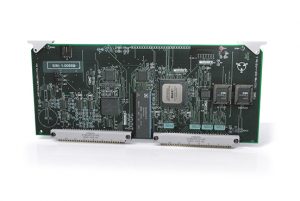

TTU-205 A2 Enhanced Calibration Capability PCB, NSN: 5998-01-509-8040
• The A2 PCB increases system accuracy, automates calibrations and eliminates soldering requirements. This PCB does not affect the TTU-205’s firmware and there is no need to change the operational and/or functional test procedures. The PCB allows a PC or ADC-2500 Series Air Data Calibrator to control the TTU-205J, run automated tests and perform fully automated calibrations.

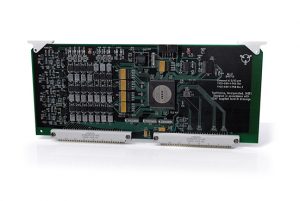

TTU-205 A1 Enhanced I/O PCB, NSN: 5998-01-515-9821
• The A1 PCB safeguards TTU-205 circuits from short circuiting, isolates fault problems and increase overall system reliability. This PCB provides enhanced reliability and repair-ability and features.

TTU-205J Decal & Marking Kit (P/N: TVCS-8001)
• Replaces the front panel identification plate as well as case decals with new TTU-205J designation.
