TTU-205 Flightline Cart

Product Details

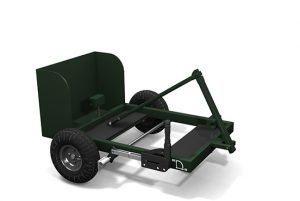

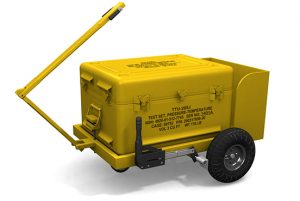

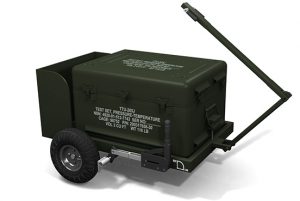

The Flight Line Cart (FLC) was designed to protect the TTU-205 and FLMTS against damage through mishandling. This can occur due to the test sets weight and various handling procedures. The FLC provides easy transportation of the TTU-205 from the tool crib or shop to the aircraft under test.
  • For transport of all TTU-205 test sets on the flightline
  • Available in Olive Drab Green or Commercial Yellow
  • Available for both aluminum and fiberglass cases
  • Nationally Stock Listed under NSN: 4920-01-533-3112
  • P/N: TVCS-6000-5
The Flight Line Cart (FLC) was specifically designed to protect the TTU-205 and FLMTS against damage on the flight line. Many TTU-205 units are damaged through mishandling, in most cases due to the test sets weight and handling procedures. The Flightline cart provides ease of maneuverability of the TTU-205 from the tool crib or shop to the aircraft under test. When not in use, the cart can be stowed away with the folding handle. The FLC features:
• Folding T-Handle allows the maintainer to easily hand tow the unit
• Hinged folding tow bar folds over test set for storage
• Low pressure, rubber pneumatic tires and rubber padding absorb most shock
• Highly visible, quick apply & release manual hand brake locks the cart for use on the flight line or storage
• Single-acting, positive locking quick-release pins secure the tow arms for quick and easy locking at 90 or 180 degrees
Flight Line CaseNew! TTU-205 High Mobility Case Replacement
Flight Line CaseAs an alternative to the FLC, we now offers a replacement TTU-205 case which features a retractable handle and recessed wheels. This case is a form fit and functional replacement for the current TTU-205 case. Simply give us the color (Commercial Yellow, Olive Drab Green or Gray) and the serial number of the test set and we will ship a direct replacement, with monel mesh gasket included. Click here to learn more about the new case.
Flight Line Case
