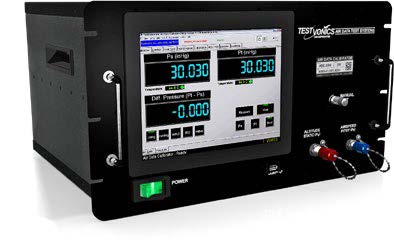

ADC-2550V3 Air Data Calibrator

Product Details

The ADC-2550V3 is a high-accuracy air data management system capable of controlling and measuring Altitude and Airspeed pressures to the highest degree of accuracy. The control and measurement range of the test system meets or exceeds most requirements for commercial and military test applications.

The ADC utilizes two digi-quartz absolute pressure transducers which provide unmatched accuracy and long-term stability. An expansive 10.4-inch glass PCAP touchscreen display allows the operator control the calibrator directly from the front panel. The intuitive graphical user interface features easily accessible modes of operation, including: Measure, Control, Leak Test, Test Program (capable of programming test sequences), Remote and Calibration. The ADC features several interfaces, including RS-232, IEEE-488.2 (for remote operation), VGA, USB2.0 (3x) and RJ-45.

The ADC is designed with hardware and software features for maximum protection to the operator and unit under test (UUT). The calibrator features input pressure regulation, over-range, over-limit and over-pressurization protection. Micro-porous filters and screening prevent debris from contaminating the system. The calibrator is equipped with pressure relief valves to protect the pneumatic system components and the UUT from damage. In the event that the calibrator loses power, internal vent valves and a front panel manual vent can be used to safely vent to ambient. Test Program mode allows the operator to create a virtually unlimited number of test routines for semi-automated testing and report generation, saving time and providing improved test consistency.

The ADC can be calibrated using a Primary Pressure Standard that will cover the full range (ADCS601, Dead Weight, Schwien).

Intuitive User Interface

The ADC Series software and additional apps feature an intuitive user interface which is easy to use and provides a low learning curve. Operators select modes of operation from tabs and sub-tabs selectable using the touchscreen or mouse and keyboard. The ADC software allows the operator to perform single or dual channel measurement, aeronautical control, pressure control, gage control, single or dual channel control, perform leak testing and more. The test program function allows the operator to create and store semi-automated test sequences with set points and tolerances which can generate test reports automatically. The IEEE-488 and RS232 interfaces allow the calibrator to be operated via an external controller. The included ADT222 software allows the system to be commanded using legacy Honeywell GPIB commands over the IEEE-488 interface.

Sperry Honeywell ADT-222 Series Emulation

The ADC-2550V3 is available with the ADT222 software app. This software allows the calibrator to emulate the legacy Sperry Honeywell IEEE-488-1975 and IEEE-488.1 1978 commands over the included IEEE-488.2 interface. This provides a plug-and-play replacement for the following legacy systems:

  • Honeywell ADT-222A  Air Data Test System | Part No. 4030935-911
  • Honeywell ADT-222B  Air Data Test System | Part No. 4047505-422 , Part No. 4047505-421 , NSN: 4920-01-105-0016|
  • Sperry ADT-222B Air Data Test System | Part No. 4047505-221 , Part No.  4047505-421
  • Honeywell ADT-222C Air Data Test System | Part No. 4083485-903

The ADT222 software is currently in use by the USAF and commercial organizations as the replacement for the ADT-222A and ADT-222B air data test system. This software is also used on the ADC-2522 and ADC-2522C systems.

Vacuum and Pressure Sources

Pressure and Vacuum sources are required when using the ADC Series as a controller. Our line of oil-free pressure and vacuum sources provide clean, dry air to the calibrator. Standalone, benchtop and rackmount options are available.

Pressure Only Source

P/N: PRU-1000  Single Output Pressure Source
P/N: PRU-2000  Dual Output Pressure Source
P/N: ADC-2500-PRES-115  NSN: 6830-01-653-2523 (DISCONTINUED)
P/N: ADC-2500-PRES-230 (DISCONTINUED)

Vacuum Only Source
Compact, high-performance oil-free vacuum source features a hermetic design providing a robust pumping speed of 60 liters per minute and a low base pressure. 115 VAC  and 230 VAC models available.

P/N: ADC-2500-VAC-115  NSN: 4310-01-653-2521
P/N: ADC-2500-VAC-230  NSN: 4310-01-670-3652

Vacuum-Pressure Source

P/N: VPU-1000



19-inch rackmount PRU Series provides Pressure only or the VPU Series provides both Vacuum and Pressure – single or dual output options available.

ADC-2550V3 Specifications

ParticularSpecification
Altitude (Ps) Range-10,000 to 109,985 ft
Static (Ps) Sensor Range0.205 to 42.4375 inHg
Static (Ps) Accuracy±0.003 inHg or 0.008% FS, whichever is greater
Altitude Rate0 to 50,000 ft/min (40.0 inHg/min)
Altitude Resolution1 ft, 0.01 mbar, 0.0001 inHg (Ps), 0.01 mmHg
Altitude Unitsfeet, meters, inHg, inH2O, mmHg, mbar, hPa, PSIA
Airspeed (Pt) Range0 to 1,050 knots
Pitot (Pt) Sensor Range0.300 to 112.323 inHg
Pitot (Pt) Accuracy±0.004 inHg or 0.008% FS, whichever is greater
Airspeed Rate0 to 800 kts/min  (40.0 inHg/min)
Airspeed Resolution0.1 kt, 0.01 mbar, 0.0001 inHg (Pt), 0.01 mmHg
Airspeed Unitskts, Qc, inHg, inH2O, mmHg, mbar, hPa, PSIA, kph, Mach
Control Stability0.001% FS (Absolute or Differential)
Operating MediumClean Dry Air or Nitrogen (non-density sensitive)
Display10.4-inch with Projected Capacitive (PCAP) touchscreen
InterfacesRS-232, IEEE-488.2, USB (x3), LAN, VGA
Altitude (Static) PortStandard: Male JIC 37° -6AN 9/16″-18 bulkhead, SS
Airspeed (Pitot) PortStandard: Male JIC 37° -4AN  7/16″-20 bulkhead, SS
Calibration CycleOne (1) year
Power90-265 VAC, 45 – 440 Hz, 1 Phase
Dimensions19.0 x 10.5 x 20.0 in (19-inch rackmount)
Weight38 lbs (17.24 kg)

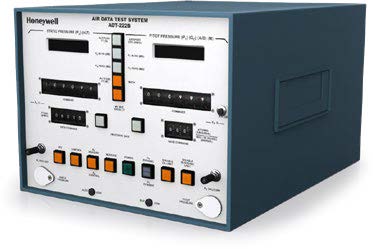

TestVonics ADC-2550V3 vs Honeywell ADT-222B Specifications

Model ComparisonADC-2550V3ADT-222A / ADT-222B
 ADC-2550V3Honeywell ADT-222B
Altitude (Ps) Range-10,000 to 109,985 ft-2,000 to 90,000 ft
Static (Ps) Sensor Range0.205 to 42.4375 inHg (Measure)0.320 to 40.000 inHg (Measure)
Static (Ps) Accuracy±0.003 inHg or 0.008% FS,
whichever is greater
±0.003 inHg FS
Altitude Rate0 to 50,000 ft/min
0 to 15,240 m/min
0 to 40,000 ft/min
0 to 12,190 m/min
Altitude Resolution1 ft, 0.3 m, 0.01 mbar, 0.0001 inHg1 ft , 0.1 mbar, 0.001 inHg
Altitude Unitsfeet, meters, inHg, inH2O, mmHg, mbar, hPa, PSIAfeet, meters, inHg, mbar
Airspeed (Pt) Range0 to 1,050 knots32 to 1,000 knots
Pitot (Pt) Sensor Range0.300 to 112.323 inHg (Measure)0.500 to 100.000 inHg (Measure)
Pitot (Pt) Accuracy±0.004 inHg or 0.008% FS,
whichever is greater
±0.004 inHg from 0.50 to 32.00,
increasing linearly to ± 0.010 inHg from 90.00 to 100.00 inHg
Airspeed Rate0 to 800 kts/min  (40.0 inHg/min)0 to 500 kts/min
(capable up to 800 kts/min)
Airspeed Resolution0.1 kt, 0.01 mbar, 0.0001 inHg (Pt)0.1 kt, 0.001 inHg
Airspeed UnitsKnots, Qc, inHg, inH2O, mmHg, mbar, hPa, PSIA, kph, MachKnots, Qc, Mach, km, inHg, mbar, mbar
Control Stability±0.001% FS
(Absolute or Differential)
±0.0002 inHg from 0.50 to 10.000,
increasing linearly to ±0.0020 inHg at 90.000
Operating MediumClean Dry Air or Nitrogen (non-density sensitive)
Display10.4-inch with Projected Capacitive (PCAP) touchscreenTwo (2) six-digit tube displays
InterfacesRS-232, IEEE-488.2, USB (x3), LAN, VGAIEEE-488-1975 (ASCII)
Altitude (Static) PortFront and rear panel male JIC 37° -6 AN 9/16″-18 bulkhead, SSFront and rear panel male JIC 37° -6 AN 9/16″-18 bulkhead, SS
Airspeed (Pitot) PortFront and rear panel male JIC 37° -4 AN 7/16″-20 bulkhead, SSFront and rear panel male JIC 37° -4 AN 7/16″-20 bulkhead, SS
Calibration CycleOne (1) year3-12 months
Power90-265 VAC, 45 – 440 Hz, 1 Phase115/230 VAC ±10% RMS, 45 -440 Hz
Dimensions19.0 x 10.5 x 20.0 in (6U) 19.0 x 12.25 x 23.0 in (7U)
Weight38 lbs  (17.24 kg)75.8 lbs  (34.38 kg)
