ADTS-1555 Series Test Set

Product Details

ADTS-1555 Air Data Test Set

The ADTS-1555 is a high-precision Air Data Test Set that can be used as to generate and measure Pitot and Static pressures. The ADTS-1555 can be used as a benchtop or installed into a standard 19-inch rackmount. The control and measurement ranges of the system make it ideal for testing commercial and military aircraft instrumentation.
  • RVSM Compliant Benchtop / Rackmountable Air Data Test Set
  • Altitude (Ps) Range: -2,000 to 80,000 feet / Rate: 0 to 50,000 feet/min
  • Airspeed (Pt) Range: 0 to 1,000 Knots / Rate: 0 to 800 Kts/min
  • Interfaces: RS-232, VGA, USB, LAN
  • Operating Medium: Clean Dry Air Only

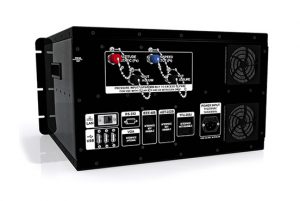

adts-1555-1The ADTS-1555 features a brilliant 10.4-inch LED backlit LCD display with a crisp resolution. A touchscreen allows the test set to be controlled directly from the front panel. An on-screen keyboard appears automatically when operator input is required. Additionally, a USB keyboard and mouse are included with the test set for auxiliary data input. The test sets transducers provide excellent reliability, stability and performance. Corrections to the test set are done through software requiring no mechanical adjustments and are capable of holding their accuracy for a period of one (1) year.

Simple and Intuitive Interface

The ADTS-1555 software provides a familiar and intuitive graphical user interface for any operator. The test set measures and record readings and displays the data readings with graphs. This data is stored on the test set and can be printed for calibration reports. In addition, the test set can be operated remotely through the RS-232 (DB9 serial) port located on the rear panel. The ADTS-1555 operating system platform provides for future expandability through software upgrades for additional testing applications.

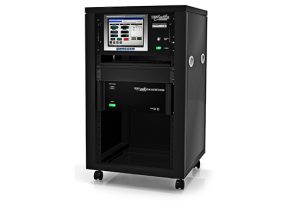

adts-1555-2Safety and Protection

The ADTS-1555 features a brilliant 10.4-inch LED backlit LCD display with a crisp resolution. A touchscreen allows the test set to be controlled directly from the front panel. An on-screen keyboard appears automatically when operator input is required. Additionally, a USB keyboard and mouse are included with the test set for auxiliary data input. The test sets transducers provide excellent reliability, stability and performance. Corrections to the test set are done through software requiring no mechanical adjustments and are capable of holding their accuracy for a period of one (1) year.
