ADC-2500V3 Air Data Calibrator

Product Details

The ADC-2500V3 Air Data Calibrator is a high accuracy air data calibrator. The calibrator is capable of controlling and measuring Pitot, Static, Altitude and Airspeed pressures with the highest degree of accuracy. The control and measurement ranges and accuracies of the calibrator meet and/or exceed requirements for both commercial and military applications. The ADC-2500V3 is approved and actively used by Air Force Metrology and Calibration (AFMETCAL) Program, US Navy METCAL, more than 30 Foreign Military countries and commercial organizations worldwide.

Model No. ADC-2500V3
NSN: 6695-01-686-5413
High Precision Air Data Standard with intuitive Graphical User Interface
Capable of calibrating Pitot Static test sets manufactured by Barfield, Laversab, DMA Aero, GE Druck and others
Automated test & calibration software for Kollsman / TestVonics TTU-205J, GE Druck ADTS 405F, CME ADTS 415F, TestVonics ADTS-3350 and ADTS-3300JS models
Interfaces: RS-232, IEEE-488.2, TTU-205J, VGA, USB, Ethernet

Features

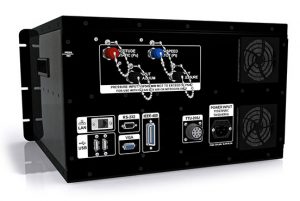

adc-2500v3-rear The ADC-2500 features a brilliant high resolution 10.4-inch LED back-lit LCD display. The expansive display allows for an uncluttered and intuitive software interface. A USB keyboard and mouse are included for control and data input. The calibrator uses two (2) high precision, non-density sensitive transducers, which provide unmatched accuracy and performance. Corrections are done through software, requiring no mechanical adjustments, and are capable of holding their accuracy for a period of at least one (1) year.

For customers who calibrate or maintain TTU-205 test sets, the ADC-2500 includes Enhanced Calibration Capability (ECC) software which provides fully automated TTU-205 calibrations. This software allows for full automation of Pre-Calibration checks and Calibration, as well as the ability to re-characterize the transducers. All data is provided in tabular or graph formats and sessions can be stored and saved for tracking or later use. Additionally, the ECC software can generate and print reports for record keeping.

Simple Intuitive Interface

The ADC-2500V3 software provides an intuitive graphical user interface through an expansive 10.4-inch touchscreen display. The calibrator measures and record readings and displays the data in table format or graphically. Data can be printed for calibration reports and records and backed up to a network or removable media. In addition, the calibrator can be operated remotely through the RS-232 (serial) or IEEE-488.2 interfaces located on the rear panel.

Safety and Protection

The ADC-2500V3 incorporates several hardware and software measures to protect the air data calibrator and the device under test (DUT). The ADC features input pressure regulation, over-range, over-limit and over-pressurization protection. 20 micron micro-porous filters and screening prevent debris from entering the system. The calibrator is also equipped with pressure relief valves to protect the pneumatic system components and the DUT from damage caused by excessive pressures. The front panel manual vent valve can be used to vent the system and DUT to ambient pressure in the event of a power loss . The ADC software apps are designed with limit exceedances and settings, providing additional safety to the DUT. Software is designed to prompt and warn the user when pressure ranges exceed the limitations of the test set. Test Program mode allows the operator to program test sequences with a virtually unlimited number of set points and tolerances. A report with data and Pass/Fail conditions can be generated automatically from the program.
