Universal Power Supply for Air Data Test Sets

Product Details

Universal and Fixed Output Power Supplies

Our power supplies deliver clean, regulated AC power in a 3.5” high bench top or optional rackmount unit. The TVCS-PS-1350 model has a fixed output of 115V 400Hz Single phase, ideal for test equipment including the TTU-205 Test Sets. The TVCS-PS-1351 model has a variable voltage output with selectable frequency (50/60/400 Hz) for testing of a variety of test equipment including the TTU-205 and other air data test sets.

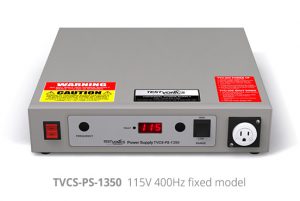

P/N: TVCS-PS-1350 (115 VAC input, 115V 400Hz fixed output) NSN: 6130-01-645-8882
provides a fixed 115 VAC, 400Hz, Single Phase power for TTU-205 and other test equipment

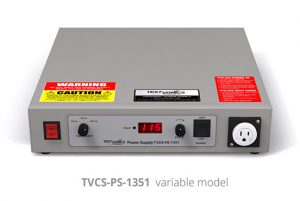

P/N: TVCS-PS-1351 (115 VAC input, variable output)
provides a variable output voltage with selectable frequency (50/60/400 Hz)
P/N: TVCS-PF-1350 (115-230 VAC input, 115V 400Hz fixed output)
provides a fixed 115 VAC, 400Hz, Single Phase power for TTU-205 and other test equipment
P/N: TVCS-PF-1351 (115-230 VAC input, variable output)
provides a variable output voltage with selectable frequency (50/60/400 Hz)

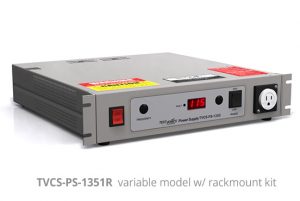

Rackmount kits available, add a “R” to the part number when requesting

Features
Literature

The TVCS-PS-1350 and TVCS-PS-1351 Series delivers 1350 VA of clean, regulated AC power in a 3.5” high bench top or optional rackmount unit. The supply is ideal for testing and operating equipment such as the TTU-205 and other test equipment. The variable unit can simulate any world wide utility, aircraft and shipboard power source and is ideal for calibration labs. Simply select the required frequency, choose a voltage range, dial up your desired voltage, and you’re ready to test. The fixed output model provides a 115V 400Hz output for testing of TTU-205 test sets and is nationally stock listed under NSN: 6130-01-645-8882.

The TVCS-PS-1351 variable model features front panel features a digital rotary encoder to set the voltage and a selector switch to set the frequency. Both supplies deliver clean sinewave output with excellent line and load regulation, high efficiency and low harmonic distortion. In addition there is a unique overload protection system that folds back voltage to maintain rated output current without waveform distortion. Small size, low cost, quiet operation and high efficiency make the supplies ideal for industrial product testing, avionics testing and power conversion.

TVCS-PS-1350 and TVCS-PS-1350R Specifications
• AC Power 1350 VA
• Input Voltage 120 VAC, +/- 10%
• Input Frequency: 47-440 Hz
• Output Voltage: 115V Fixed, isolated
• Output Frequency: 400Hz Fixed

TVCS-PS-1351 and TVCS-PS-1351R Specifications
• AC Power 1350 VA
• Input Voltage 120 VAC, +/- 10%
• Input Frequency: 47-440 Hz
• Output Voltage: Selectable 0-135 V or 0-270 V (option), both isolated
• Output Frequency: Selectable 50 Hz, 60 Hz or 400 Hz (option)
