Precision Extender Board

Product Details

Precision Extender Board

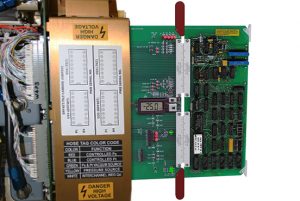

The Precision Trim Extender Board makes troubleshooting and adjustments on the TTU-205 quick and easy. The extender board eliminates the need for oscilloscopes and digital voltmeters. The PCA has an advanced diagnostic tool, allowing technicians to monitor valve states, power supply voltages, transducer frequency outputs, and a number of other analog and/or digital signals. Additional features include:
  • R-11 switch provides adjustment for fast transducer heater warm-up
  • R-37 switch provides adjustment for servo gain control
  • LED’s allow the user to quickly diagnose and troubleshoot test set issues
  • Digital display provides for quick and easy adjustment of the R-11 & R-37 pots
  • Part No. TVCS-6000-8

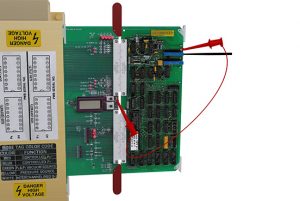

Precision Trim ExtenderThe Precision Trim Extender Board makes TTU-205 calibrations and adjustments quick and easy. The extender board eliminates the need for general purpose test equipment such as oscilloscopes and digital voltmeters. Pot adjustments for R-11 Fast Warm-Up and R-37 Servo Gain trim can be set in minutes using the extender board. The board also has an advanced diagnostic tool, allowing calibration technicians to monitor valve states, power supply voltages, transducer frequency outputs, and a number of other analog and/or digital signals. The extender board can be used with all TTU-205 Printed Circuit Boards (A1-A5), including TestVonics Enhanced Calibration Capability (ECC) A2 PCB and Enhanced I/O A1 PCB.

• R-11 switch provides adjustment for fast transducer heater warm-up
• R-37 switch provides adjustment for servo gain control
• LED’s enhance functionality, allowing the user to quickly diagnose and troubleshoot test set failures
• A Digital display provides for quick and easy adjustments for both the R-11 & R-37 potentiometers
Precision Trim Extender
Note: this product is formerly P/N: TVCS-5002-12, which was sold as part of the ECC Calibration Lab Kit P/N: TVCS-5002 with an NSN: 4920-01-510-5626
